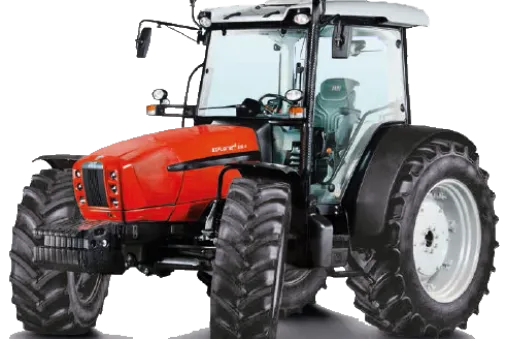

SAME EXPLORER 115

Model : A PERFECT MIX OF TECHNOLOGY, FUNCTIONALITY AND COMFORT

Advanced technology and ease of use are the main characteristics that make Explorer3 E a powerful tractor with power from 85 to 115 HP Stage I and Stage II. With the modern SDF 1000 cylinder 4 Series 1000 engine, this ensures a high level of efficiency combined with low fuel consumption. Explorer3 E is available in two versions: platform and with cabin

TITLE 1
TITLE 2

Spesification

ENGINE :
Emissions : Tier2; Manufacturer : SDF 1000.4 WTI; Cylinders/Capacity : 4/4.000 No./cc; Naturally aspirated : not available; Turbocharged intake : STD; Turbo Intercooler intake : STD; Max. homologated power (ECE R 120) : 81/110 kW/HP; Max. engine speed (rated) : 2.350 rpm; Max. torque : 396 Nm; Engine control mechanical : not available; Engine control electronically : STD; Cyclone pre-filter : OPT; Cooling liquid : STD; Under-hood silencer with vertical exhaust : STD; Fuel tank capacity : 150 litres

MECHANICAL GEARBOX :
Synchronised : STD; Number of speeds : 15+15 n°; Number of speeds with supercreeper gear : 20+20 n°; Minimum/maximum speed with supercreeper gear : 2.01/0.22 km/h; Number of speeds with Hi-Lo : 30+30 qté; Number of speeds with Hi-Lo and Supercreeper gear : 40+40 qté; Max. speed : 40 km/h; Mechanical clutch dry, single : STD

REAR PTO :
Multiplate wet clutch : STD; Electrohydraulic control : STD; PTO 540/1.000 : STD; PTO 540/540 ECO/1.000/1.000 ECO : OPT; Ground speed PTO : OPT

FRONT AND REAR AXLE :
Front wheel drive electrohydraulically engaged : STD; Electrohydraulically operated differential lock : STD; Steering angle 2WD : 65° degrees; Steering angle 4WD : 55° degrees

BRAKES :
Braking system with wet brake discs : STD; Mechanical parking brake : STD

STEERING :
Hydrostatic steering with independent pump : STD; Steering pump delivery : 41 L/min

HITCH :
Category : II; Rear hitch mechanical : STD; Rear hitch lift capacity : 4.800 kg

HYDRAULIC SYSTEM :
Pump output (std) : 56 L/min; Open centre hydraulic system : STD; Mechanical distributor engagement : STD; Rear auxiliary distributors : 2/4/6/8

DRIVING POSITION :
Side control levers : STD; Cab and/or ROPS : STD; ROPS with sun shade : OPT; Driver seat with mechanical suspension : STD; Instrumentation analogue : STD

DIMENSIONS AND WEIGHTS :
Standard rear tyres : 420/85R30"; Max. length : 3.990 mm; Max. length with rear linkage : 2.050-2.458 mm; Width (min-max) : 2.340/2.320 mm; Wheelbase (4WD/2WD) : 1.600-2.100 mm; Front track (min-max) 2WD : 1.630-2.030 mm; Front track (min-max) 4WD : 1.602-2.002 mm, Rear track (min/max) : 2.790 mm; Max height at ROPS : 2.790 mm; Max. height with cab : 4.120/ 3.540 mm; Weight with ROPS (4WD/2WD) : 4.660/ 3.680 kg; Weight with cab (4WD/2WD) : 7.200/ 5.300 kg
