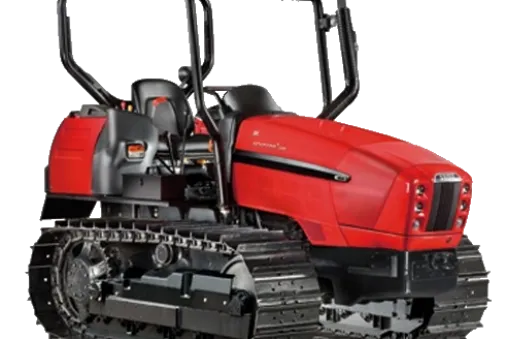

SAME KRYPTON

Model : Unrivalled go-anywhere capability

Kemampuan Go -where dengan keamanan total. SAME Krypton3 adalah model paling kuat di keluarga Krypton3, siap untuk mengatasi medan apa pun dan memenuhi kebutuhan khas pertanian khusus. Diciptakan untuk memberikan kinerja yang tak tertandingi dalam kondisi medan yang berbukit atau berbukit. Desain modern dengan panel bundar yang halus dirancang untuk menawarkan visibilitas yang sangat baik dan untuk meminimalkan kerusakan tanaman, Krypton3 SIX menawarkan jarak sumbu roda 1,850 mm dan undercarriage 6-roller inovatif yang menawarkan stabilitas dan traksi yang lebih besar.

TITLE 1
TITLE 2

Spesifikasi

ENGINE :
Cylinders / Displacement : 4/4.000 n°/cm³; Air intake : Turbo/Intercooler; Maximum power, Homologated (2000/25/EC) : 102/75 (HP/kW); Maximum power (2000/25/EC) : 102/75 (HP/kW); Rated engine speed : 2.300 rpm; Maximum torque : 376 Nm; Revs at maximum torque : 1.600 rpm; Torque rise : 21.3 %; Cooling : liquid-oil; Engine control (governor) : electronic; Air cleaner : dry type with safety element and dust unloader; Silencer under hood : with vertical exhaust adjacent to ROPS upright; Fuel tank capacity : 130 litres

TRACKS :
Track chains : dry; Rollers and track idlers : oil-immersed; Bottom rollers : 6 n°; Top rollers : 1 n°; Cleats per track : 40 n°; Track guards : cast; Cleat width : 450 mm; Footprint : 14,292 cm²; Front ballast weights : 8 front weights, 40 kg each n° & 2+2 side weights, 40 kg each n°

DIMENSIONS AND WEIGHTS :
Length : 3.472 mm; Width : 1.800 mm; Track width : 1.350 mm; Ground clearance : 400 mm; Wheelbase : 1.850 mm; Weight : 5.470 kg

TRANSMISSION :
Gearshift clutch : pedal operated; 4-speed, mechanical shift synchromesh gearbox with 2 ranges + Underdrive (minimum speed: 1.33 km/h : 16 FWD+16 REV; -speed, mechanical shift synchromesh gearbox with 2 ranges + creeper (minimum speed: 0.61 km/h) : 16 FWD+16 REV; Shuttle : mechanical, synchronized; Lubrication : pressure circuit + transmission oil cooler

REAR P.T.O. REAR P.T.O. :
Clutch : oil-immersed multi-disc; Speeds : 540-540 ECO-1.000 rpm; Operation : hydraulic servo

BRAKES AND STEERING :
Steering clutches : oil-immersed multi-disc with hydrostatic servo; Steering brakes : oil-immersed band type with hydraulic servo; clutch-brake control : sequential, via levers under the instrument panel; Service brakes : pedal operated

HYDRAULIC LIFT :
Rear lift : mechanical; Maximum lifting capacity : 3.000 kg; Rated flow of pumps : 52 + 25 with dual pump l/min.; Auxiliary spool valves : 6/10 with flow control n° ports; Heavy Duty three point linkage : with fixed link ends; (lift links and top link) : with auto hitch ends

DRIVING POSITION :
Platform : mounted on silent-block isomounts; Rollover protective structure : with 4 uprights & sunshade roof and 4 work lights; Shift levers : right of driving seat; Shuttle lever : right of driving seat; Accelerator : hand throttle and decelerator pedal; Driving seat : mechanically adjustable with seat belt & air suspension with seat belt
